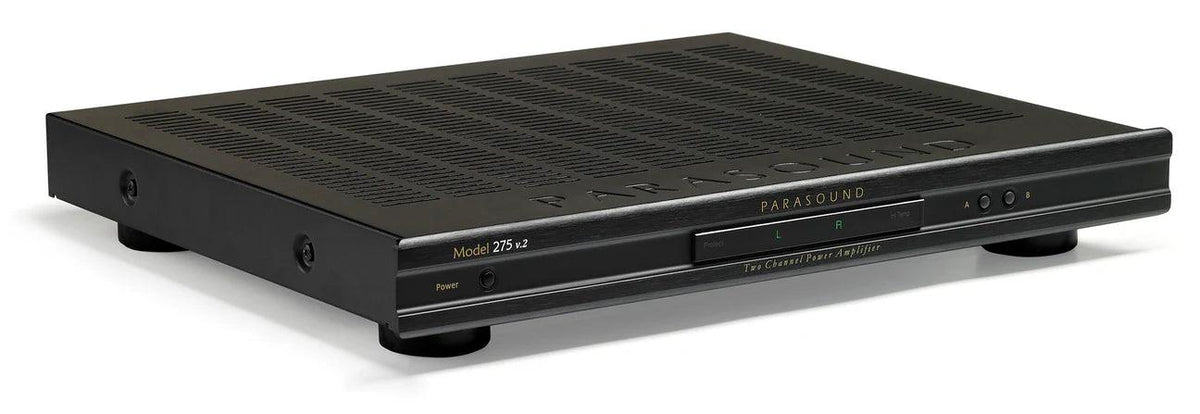

Parasound NC 275v2 Power Amplifier

The Parasound NewClassic 275 v.2 Two Channel Power Amplifier from Parasound utilizes class AB amplifier technology, meeting the strict quality and performance standards the brand is known for. This exceptional audio component guarantees years of reliable and enjoyable use.

Key Features:

• 90 watts x 2 into 8 Ω (all channels driven)

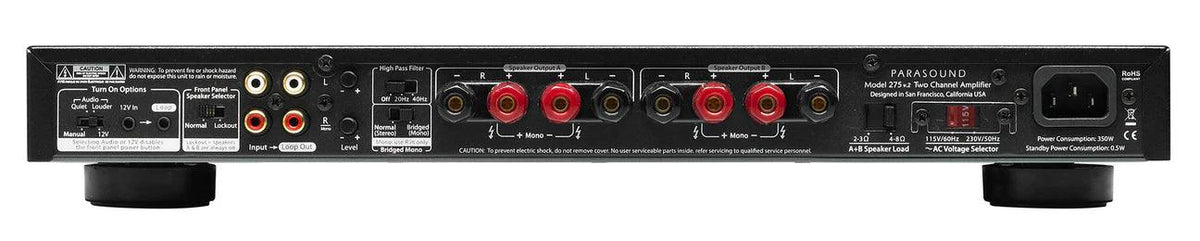

• Two pairs of speaker outputs with front panel A/B buttons
• High pass filter, switchable for 20Hz or 40Hz
• Automatic on/off by DC trigger or audio signal
• Fully discrete circuitry with high current toroid transformer
• Bridging switch for stereo or mono operation
• Gold plated RCA input jacks and 5-way speaker terminals

Specifications:

Power Output - (RMS power, 20 Hz - 20 kHz)
All Channels Driven
90 watts x 2, 8Ω
150 watts x 2, 4Ω
150 watts x 2, 2Ω (Load switch set to 2-3Ω)

Bridged Mono
200 watts x 1, 8Ω
200 watts x 1, 4Ω (Load switch set to 2-3Ω)

Current Capacity
20 amps peak per channel

Frequency Response
20 Hz - 50 kHz, +0/-3 dB, 1 watt

Dynamic Headroom - 1.3 dB

Total Harmonic Distortion
0.35% at full rated output
0.025% at average listening levels

IM Distortion - 0.05 %

Transient IM Distortion - Not measurable

S/N Ratio
110 dB at rated output, IHF A-weighted
103 dB at rated output, unweighted
93 dB at 2.828 V output, IHF A-weighted
84 dB at 2.828 V output, unweighted

Input Impedance - 33 k Ω

Input Sensitivity
800 mV for full rated output (28dB)

Inter-Channel Crosstalk
80 dB @1 kHz, 72 dB @10 kHz, 65 dB @ 20kHz

Damping Factor - Over 150 at 20Hz

12V Trigger Turn On - DC 9 - 12V, 15 mA

Audio Turn On
Quieter: 1 mV
Louder: 6 mV

AC Power Requirement
110 - 120 V / 220 -240 V, 50 - 60 Hz
0.5 watts standby
25 watts Idle (no audio)
350 watts full output

Dimensions
17-1/4" Wide
16" Deep, with cables connected
2-1/2" High with feet, 1-3/4" panel only (1U)
(437 x 406 x 63mm, 44.1 mm panel only)

Net Weight - 20 lbs (9.1 kg)

Rack Mount Accessory
May be Purchased Separately
RMK11
