RATING

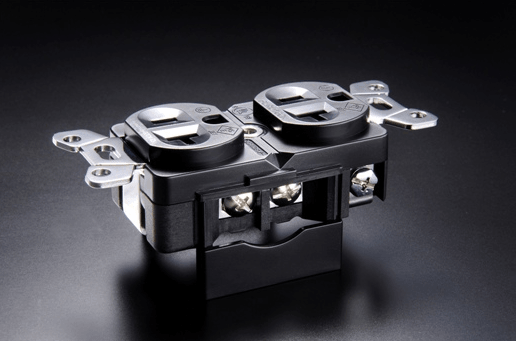

Furutech’s Top-Tier GTX Receptacles
Refinement has a New Name…
GTX-D(R) Rhodium-Plated duplex receptacles
GTX-D(G) Gold-Plated duplex receptacles
Type: 2-pole+earth Rating: 20A 125V A.C.
Refinement has a New Name…
GTX-D(R) Rhodium-Plated duplex receptacles
GTX-D(G) Gold-Plated duplex receptacles
Type: 2-pole+earth Rating: 20A 125V A.C.
FEATURES
The Pure Transmission Mission
A very Furutech power product, manifesting a devotion to best performance in every element of AC and signal transfer Considering that what you actually hear is in a very real sense the direct product of the incoming AC then the final few feet are of prime importance for best performance.
Of course everyone would love to make pure-copper receptacles, but its malleability – lack of stiffness – makes pure copper a poor choice. That’s why you’ll find less conductive metals like beryllium copper, phosphor bronze or brass in some receptacles. Furutech’s intense engineering scrutiny has resulted in an industry-first, a technique allowing us to use special Furutech 24k gold- or rhodium-plated α (Alpha) pure copper conductors strengthened and sprung by our innovative nonmagnetic Stainless Steel Conductor Spring System that keeps a firm grip yet won’t damage male connector blades or their plated surfaces. Even the screw-down pressure plates are curved to maximize contact area. The GTX receptacle can be summed up in a word; virtuoso!
Feel, experience and communicate with music and sound!
A very Furutech power product, manifesting a devotion to best performance in every element of AC and signal transfer Considering that what you actually hear is in a very real sense the direct product of the incoming AC then the final few feet are of prime importance for best performance.
Of course everyone would love to make pure-copper receptacles, but its malleability – lack of stiffness – makes pure copper a poor choice. That’s why you’ll find less conductive metals like beryllium copper, phosphor bronze or brass in some receptacles. Furutech’s intense engineering scrutiny has resulted in an industry-first, a technique allowing us to use special Furutech 24k gold- or rhodium-plated α (Alpha) pure copper conductors strengthened and sprung by our innovative nonmagnetic Stainless Steel Conductor Spring System that keeps a firm grip yet won’t damage male connector blades or their plated surfaces. Even the screw-down pressure plates are curved to maximize contact area. The GTX receptacle can be summed up in a word; virtuoso!
Feel, experience and communicate with music and sound!
SPECIFICATIONS
・Rhodium or gold-plated α (Alpha) Pure Copper Conductor (0.8mm)
・Nonmagnetic stainless conductor spring system
・Body material: Nylon/fiberglass with piezo ceramic and carbon damping material
・Cover material: Polycarbonate
・Parts set with nonmagnetic 2.0mm-thick stainless brace plate
・Specified for wire diameters of 4mm (set screw)
・Dimensions: 104.0 mm (L) x 47.2 mm (W) x 28.0 mm (H)
・Total attention to detail and build quality extends right down to a specially designed patent-pending
conductor pressure plate (see below) that increases contact area
・Furutech spade terminal FP-209 recommended for 10 AWG wire
・Nonmagnetic stainless conductor spring system
・Body material: Nylon/fiberglass with piezo ceramic and carbon damping material
・Cover material: Polycarbonate
・Parts set with nonmagnetic 2.0mm-thick stainless brace plate
・Specified for wire diameters of 4mm (set screw)
・Dimensions: 104.0 mm (L) x 47.2 mm (W) x 28.0 mm (H)
・Total attention to detail and build quality extends right down to a specially designed patent-pending
conductor pressure plate (see below) that increases contact area
・Furutech spade terminal FP-209 recommended for 10 AWG wire
