Soulution 560 D/A converter

No deletions at the source are mandatory. This holds even more true for the playback of high-resolution files than it did for CDs and SACDs. No amplifier or loud­speaker can make good for what has been lost at the source. The quality of the recording and the signal supplier are of fundamental importance in high fidelity.

The 560 D/A-Converter excels at exactly this task. It captures all digital music data and transports it in the analog domain. No deletions, no additions!

Highlights

Philosophy
In many areas, the 560 D/A Converter is based on the same proven technical solutions used in the 745 SACD-Player. It also embodies the same principles in its design: top-grade digital inter­faces for optimal reception of the music data, a super-precise master clock generator to avoid jitter, intelligent digital signal processing with over­sampling technology, and analog output stages of top-end pre­amplifier quality.

Design
As with its Series 7 sibling, the 560 D/A-Converter is packed with cutting-edge technology with one objective – the love of music. The parallels include a consistent dual mono design in the output stages and separate power supplies for digital elec­tronics and the analog stages. The 560 D/A-Converter adds a digital volume control that allows direct connec­tion to a power amplifier.

Upsampling
Audio data is buffered and then upsampled to 24Bit/384kHz. We believe the precision of inter­polation is more important than high clock rates. Our players and D/A converters use an algorithm from the highly regarded Anagram Technologies followed by Burr Brown D/A converters in a digital symmetric configuration. As we consider the PCM conversion technology as superior, the DSD signals get converted before its final D/A conversion.

zeroφtech
The 560 D/A-Converter is equipped with solutions innovative Zero-Phase-Technology. The smallest timing errors provoked by the analog low pass filter of the D/A converter get eliminated. Every D/A converter requires an analog low-pass filter in its output to suppress high-frequency noise and aliasing signals. The 560’s 3rd order Bessel filter, with a cut-off frequency of 120kHz, does show a phase shift of up to 15° in the audio band. Due to the zero-phase technology, the phase error of the analog music signal remains below 1°, 20Hz – 100kHz! The Zero-Phase Technology brings you even closer to the beauty of the source material! The music gets even more realistic and 3-dimensional with much “air” around instruments and voices. As close to the source as possible! No detail gets lost.

D/A conversion
Burr-Brown devices perform D/A conversion only. Their internal upsampling and filter stages are not used. The output currents are converted to voltage and then filtered. With an internal bandwidth of 40 MHz, this current/voltage conversion stage allows the best signal-to-noise performance and maximum dynamics in the analog domain.

Output stage
The wideband output stage of the 560 D/A-Converter has a bandwidth of 20MHz (-3dB). With such speed of response, all musical details are reproduced true to life creating a three-dimensional, spatial sound to bring real listening pleasure.

Operation

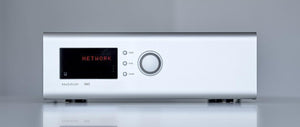

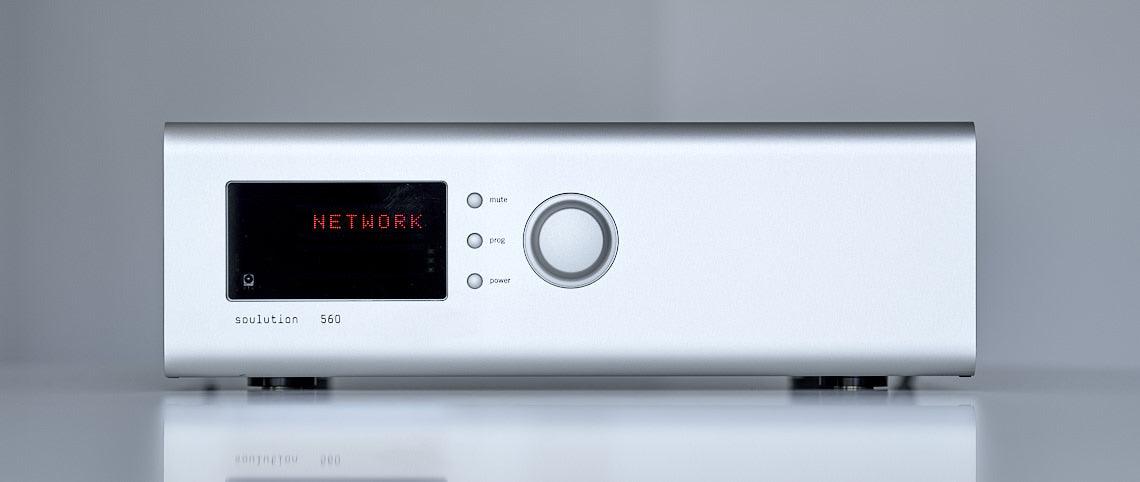

The 560 D/A Converter is operated from front-panel buttons and a rotary control. Further functions can be used to optimise and match an entire audio system around different components.

Specifications

Mains- 100-120V (50-60Hz)

220-240V (50-60Hz)

Power consumption- <0.5 W standby

100 W device in operation

Analog outputs- 1 x balanced (XLR)

1 x unbalanced (RCA)

Frequency response- 0-200kHz (DXD)

THD+N- <0.002% (20Hz-20kHz)

Signal-to-noise ratio- > 140 dB

Channel separation- > 130 dB

Output impedance- 10 Ω balanced (XLR)

10 Ω unbalanced (RCA)

Output Voltage- 4 Vrms balanced (XLR)

2 Vrms unbalanced (RCA)

Output current max- 0.2 A (limited by protection circuit)

Volume control range- 0 to -79 dB in 1 dB steps

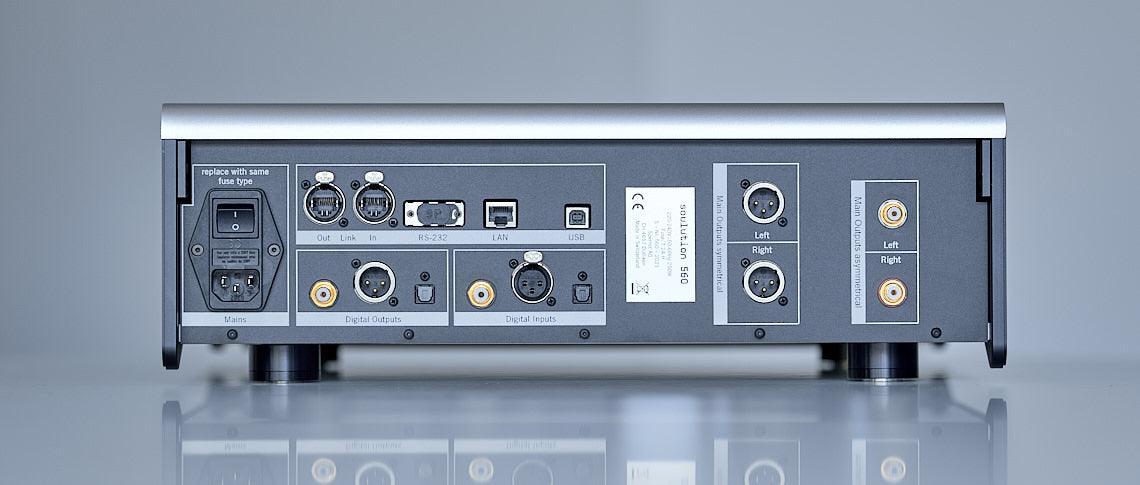

Digital inputs- AES/EBU, SPDIF-RCA, Optical, USB, Network

Digital outputs- AES/EBU, SPDIF-RCA, Optical

Digital formats- WAV, AIFF< FLAC< ALAC< DSF, DFF, DXD, MP3, AAC

Bit depth/sampling rage max- AES/EBU: 24 bit/192 kHz

SPDIF: 24 bit/192 kHz

Optical: 24 bit/96 kHz

USB: 24 bit/384 kHz, 1 bit/5.64 MHz

Network: 24 bit/384 kHz, 1 bit/5.64 MHz

Dimensions- 442 x 143 x 448mm

(W x H x D)

Weight- approx. 20 kg

LINK (remote turn-on)- 12 V control signal

USB driver- v1.22c for Win7

v1.611 for Win7

v2.26 for Win10
